Information, organized.
The landscape display groups P1, P2, differential pressure and wash status so key information is easy to find.
F6 · Next-generation backwash controller
Backwashing.
Clearly in control.
Pressure, wash sequencing and local operation,
organized in one clear control panel.
Building on the original sequential-washing logic,
with a new enclosure and planned connectivity for filtration systems.
Available for sale · Selection enquiries welcome
For selection, specify channel count, pressure-sustaining valve, pressure sensors, power supply and connectivity version.
Ask about F6 configuration & pricingF6 · Backwash controller available for sale
10 channels
Sequential washing Valve outputs per node
P1 / P2
Dual pressure & differential pressure A clear view of operating status
5 keys
Direct local operation Physical-key workflow retained
F6 / 3D product film
Look inside sequential backwashing.
See the flow direction and particle movement during backwashing across ten illustrative filter units.
Product image labels are translated for illustration. Confirm the delivered device interface language with your order. Video overlays and source design downloads retain their original language. English subtitles are provided.

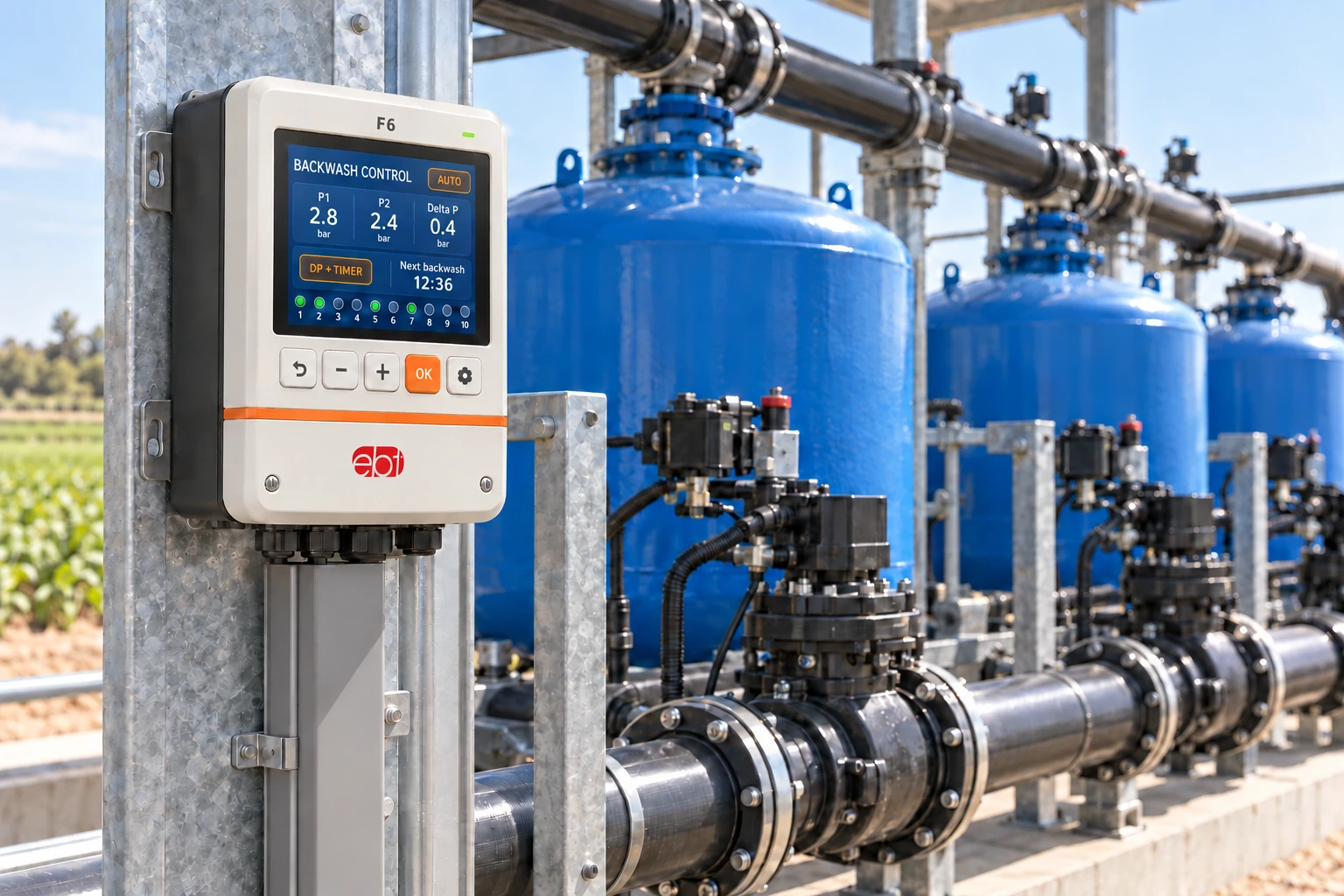

01 / Designed for the site
Clear at a glance.
Direct at a touch.
A warm-white enclosure with restrained orange accents.
Display, controls and wiring each have their place.
Controls you can feel.
Back, −, +, OK and Settings retain a familiar five-key layout, with gloved operation as a design goal.
Separate areas for maintenance.

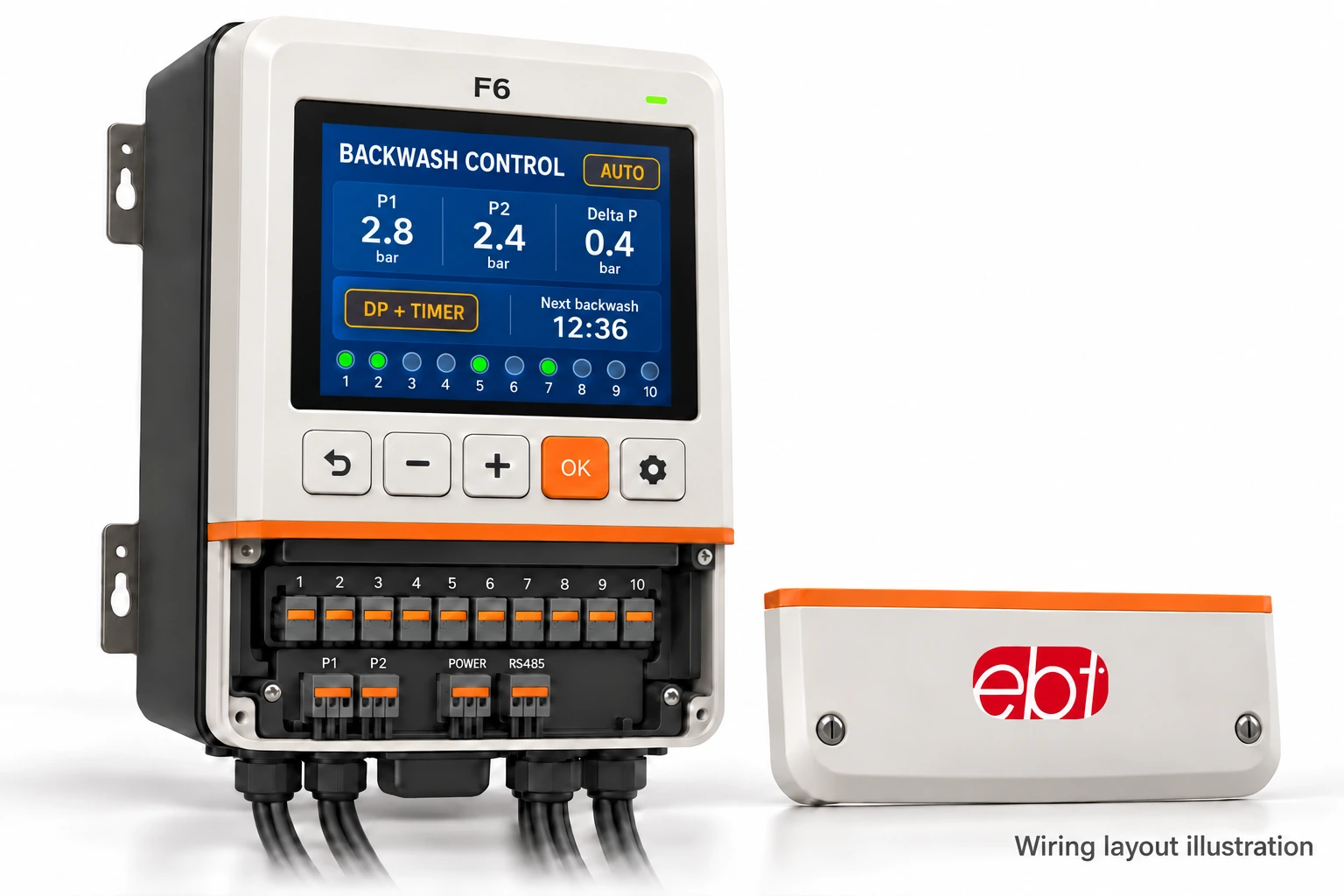

Controls and wiring occupy separate compartments. Bottom cable exits leave room for installation, servicing and labels.
02 / Follow every step
An orderly wash sequence.
A clear view of progress.
Open, backwash, close, pause, then move to the next channel.
Progress and a countdown keep each stage visible.
Try the local-control workflow
Your pace.
Your pace.
Your control.
Choose an automatic trigger mode, or manually start and stop a wash-sequence demonstration.
Trigger a wash sequence by the selected pressure difference or time condition, balancing filter condition with scheduled cleaning.
Interactive illustration · Not the actual device interface
Runs only in your browser and connects to no equipment. Sample pressures and accelerated timing are not device specifications.
F6
Backwash control Pressure + timer
P12.8bar
P22.4bar
Differential pressure ΔP 0.4bar
Stopped Ready to start
Channel 01/ 10
Time remaining —s
1
2
3
4
5
6
7
8
9
10
Sample data / Accelerated demo Completed 0 cycles
− / + select a channel · OK starts/stops · Settings changes mode · Back resets
Demo stopped. Channel 1 selected.
01 Open valve →02 Backwash →03 Close valve →04 Pause →05 Next channel
The original device uses physical keys and does not enable touch operation. Browser buttons demonstrate the control logic here; the screen is an illustrative redesign.
03 / Planned new platform
From beside the device
to the wider site.
An ESP32-S3 controller paired with a separate in-house LoRa module is planned.
Clear paths for nearby setup, hotspot updates and local-network management.
Control core F6ESP32-S3 + Separate in-house LoRa module
BLE
Mobile app · Nearby setup
Planned Bluetooth connection for setting parameters and viewing device status.
Wi-Fi
Phone hotspot · Firmware OTA
Planned connection to a phone's 2.4 GHz Wi-Fi hotspot for firmware updates.
In-house LoRa
Local-network gateway · Web management
A gateway is planned to provide web control and OTA access.
These are development plans for the new platform. LoRa requires a compatible gateway; internet access is provided by that gateway or a phone hotspot. This connectivity-upgrade plan does not include 4G.
04 / Retain and improve
Familiar control logic.
New possibilities.
Keep familiar operation.
- 01Sequential washing
Ten pulse-valve outputs run through open, backwash, close and pause stages.
- 02Multiple trigger conditions
Timer, differential pressure, combined pressure + timer, and auto-off modes, with manual backwash control.
- 03Local status & records
P1/P2 and differential pressure, stage countdowns, wash statistics, parameter storage, RTC and RS485.
Take usability and connectivity further.
- 01New industrial design
Clearer information, a five-key control area and a separate wiring compartment.
- 02ESP32-S3 platform
BLE app-based setup and Wi-Fi OTA through a phone hotspot are planned.
- 03In-house LoRa module
A separate wireless module and local-network gateway are planned for web control and OTA.
05 / Design specifications
Every detail
with a clear basis.
The F6 version available for sale and the planned platform upgrade are presented separately. Confirm power, valve interfaces, pressure sensors and protection requirements before ordering.
Download product design notes| Valve-control channels | 10 pulse-valve outputs per node A pressure-sustaining valve uses channel 9 or 10, leaving 9 wash channels. |
|---|---|
| Wash sequence | Open → Backwash → Close → Pause → Next channel |
| Automatic triggers | Timer / Differential pressure / Pressure + timer / Auto off |
| Manual operation | Manual backwash start and stop |
| Display & keys | 480 × 320 landscape display · 5 physical keys Back / − / + / OK / Settings. Touch operation is not enabled on the original device. |
| Status & records | P1/P2 and differential pressure, wash status and countdown, wash statistics, parameter storage and RTC |
| Wired interface | RS485 |
| Controller platform | ESP32-S3 |
|---|---|
| Nearby connectivity | BLE · Mobile-app parameter setup |
| Wi-Fi updates | Connect to a phone's 2.4 GHz hotspot for OTA |
| Site wireless link | Separate in-house LoRa module Planned web control and OTA through a compatible local-network gateway. |
| Power & valve interfaces | Power supply, output voltage/current, valve wiring and connector definitions to be finalized |
|---|---|
| Pressure interface | Sensor standard, physical P1/P2 mapping and pressure range to be finalized |
| Structure & environment | Dimensions, mounting holes, materials, protection rating and environmental suitability to be finalized |
EBTIOT · F6
