A5 · Ball & butterfly valves · Separate solar panel
See the motion.
Know the direction.
Ball- and butterfly-valve options with a reduction motor driving the valve directly. A flush mechanical dial shows the valve opening angle.
Available for sale · Selection enquiries welcome
For selection, specify ball or butterfly valve, size and torque, stem/flange, power supply and site conditions.
Ask about A5 configuration & pricingAvailable for sale · Ask us about selection
A5 / 3D product film
From the dial to the valve disc.
Rebuilt from the A5 butterfly-valve product images, showing how the flush mechanical dial, shaft and disc move together.
Video overlays and source design downloads retain their original language. English subtitles are provided.
A5，
Start with the site's needs.
Compare actuation, power and local operation for ball and butterfly valves. Select for your valve type and site conditions; delivered configuration follows the confirmed order.
- Ball-valve versions
- A5-B-M: 4G + LoRa main unit; A5-B-R: LoRa field unit
- Butterfly-valve versions
- A5-D-M: 4G + LoRa main unit; A5-D-R: LoRa field unit
- Mechanical indication
- Flush 0°–90° dial; calibrate to the valve stem and installation orientation
- Local operation
- Three front keys and a side emergency manual-access cover
- Power arrangement
- Separate solar panel with one downward-facing power connection

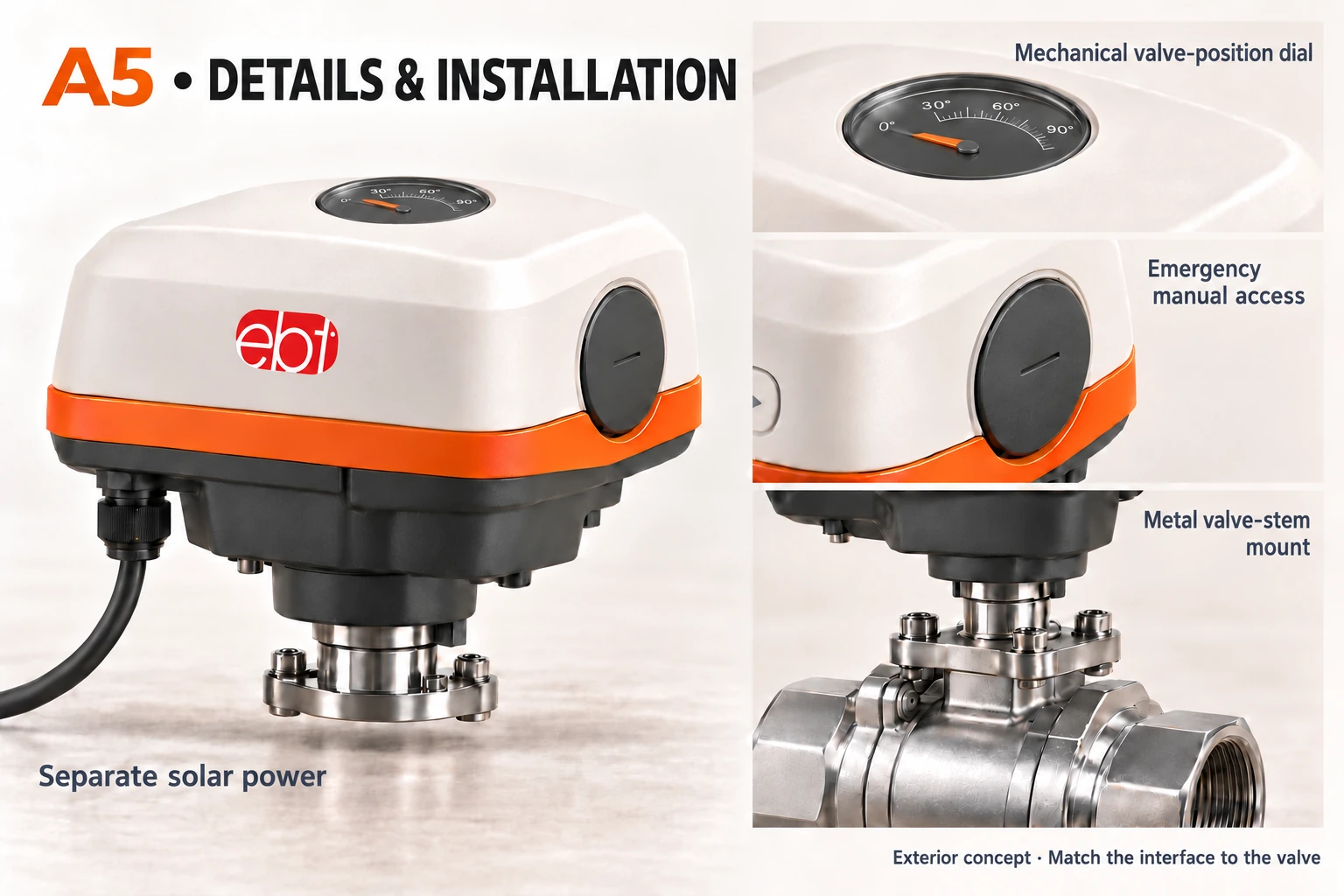

A flush dial.
Clear information on site.
A flush or slightly recessed clear window protects a flat mechanical pointer and 0°–90° scale. The side cover provides emergency manual access, while a metal mounting base connects to the valve stem.
Appearance concept · Not an engineering drawing
Separate solar power.
Each part in the right place.
A separate solar panel connects to the actuator through one downward-facing power connection. Plan the panel, valve and cable positions for the site. The illustration does not establish an energy budget or verified installation compatibility.
Appearance concept · Not an engineering drawing
Understand the product.
Then confirm the details.
A5 motorized valves are available for sale in ball- and butterfly-valve options. Match the indicator to the installation direction. Confirm torque, stem/flange, power, medium and site conditions before ordering. Configuration and specifications follow the agreed order; images explain appearance and installation.
How do main and field units differ?
M versions use a 4G + LoRa main-unit arrangement; R versions are LoRa field units. Define topology, protocol and node count at the project stage. This does not establish verified multi-hop mesh capability.
Does the dial establish valve-position accuracy?
No. The dial provides local indication; an image cannot establish accuracy. Indication direction, limits and accuracy depend on the selected version and confirmed specifications.
Can I order a valve from the images alone?
First confirm ball or butterfly type, size, stem/flange interface, load and site power. This product is available for sale; parameters and compatibility are confirmed during selection and quotation.
Start with your pipeline
and site requirements.
Mr. Chen · Xiamen EBTIOT Technology Co., Ltd.
159 8090 1433ebtiot888@gmail.com Download A5 design files
