Integrated solar power · 4G + LoRa
Field control. Connected simply.
Dual pulse-valve control in a compact enclosure.
Watch the 3D filmAvailable for sale · Selection enquiries welcome
For selection, specify valve type and pulse requirements, power supply, number of plots and platform integration needs.
Ask about V8 configuration & pricing
Warm white & Field orange A simple exterior designed for the field
V8 / 3D product film
One command. A look into the flow path.
Move from a studio view into an illustrative pulse-valve cutaway to see how opening and closing affect flow.
Video overlays and source design downloads retain their original language. English subtitles are provided.
Integrated design
Keep complexity inside.
Bring simplicity to the field.
A solar panel forms the front face, with control keys along the lower edge. A rounded warm-white body and visible orange rear cover bring a refined industrial appearance to field equipment.
A calm front.
A visible rear.
Warm white keeps the body visually light; orange helps distinguish equipment during field inspections. Cable connections are at the rear, leaving the bottom edge clean.
Connectivity reaches the field.
One main unit.
Two connections.
4G links to the remote platform; LoRa links to field units. Distributed valves are organized around a main unit in a clear control layout.
Connect to the remote platform.
The main unit communicates with a remote platform over a cellular network, providing a remote-connection path for field valve control.
Remote platform ↔ 4G main unitExtend control into the field.
The main unit communicates with field units over LoRa to coordinate valve control.
Main unit ↔ LoRa field unitCommunication performance depends on carrier coverage, deployment conditions and final network configuration.
Connections at the rear.
One connector.
Two independent channels.
One connection, two outputs. A multi-pin connector carries two independent pulse-valve control channels. A matching harness connects to the two valves.
One connector, at a lower rear corner.
Offset from the central mount to leave room for plugging in and tightening.
Cables down, neatly along the pole.
Allow a suitable bend radius while keeping the front clear.
Two keys, close at hand.
Two front control keys and simple status indicators remain accessible.
A considered place in the field.
A compact body.
At home in the field.
From the device mount to a standard tubular pole,
then to a removable ground stake.
A simple exterior extends naturally to the installation arrangement.
Device mount
A compact central mount connects the unit to its pole without covering the rear connector.
Standard tubular pole
A slender white tube keeps the overall form simple, with cables routed along the pole.
Removable ground stake
A metal stake and footplate support separate pole-and-stake assembly for transport and installation.
Every side deserves a closer look.

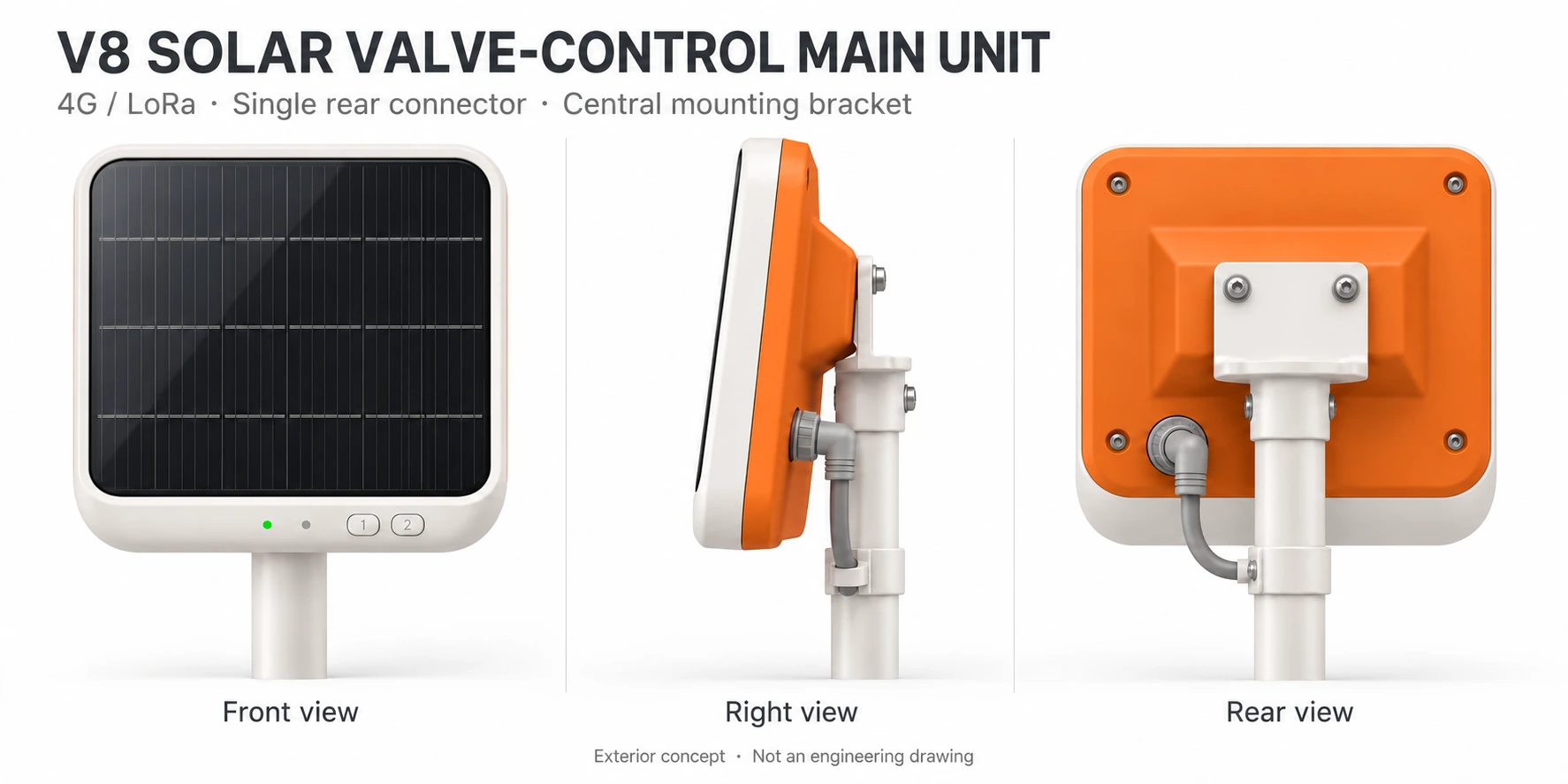

Three views. A clearer picture.
Front · Right · Rear. Illustrates appearance and interface layout; dimensions follow the structural design.
- Product type
- Valve-control main unit with integrated solar panel
- Communication
- 4G ＋ LoRa
- Controlled devices
- Two independent pulse valves
- Connector layout
- One rear multi-pin connector
- Enclosure colours
- Warm-white front · Field-orange rear
- Installation parts
- Device mount + Pole + Ground stake
From the main unit to field nodes.
Pair with V7.
Reach more plots.
V8 uses 4G for the remote platform and LoRa for V7 field units. Golden-ratio V7 units have no 4G and focus on two-channel pulse-valve control at their installation locations.
Explore the V7 golden-ratio LoRa field unitThis layout is illustrative. Verify actual coverage and node capacity through site testing.
Solar valve controller
Simple in form.
Made for the field.
Download V8 design files Three-view drawings · Product renderings · Installation design
